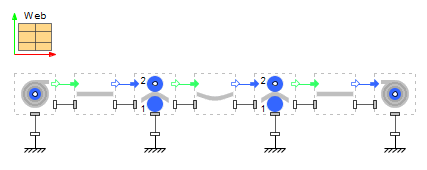

Name

Default

Units

Description

Modelica ID

Use Default Properties (WP1)

true

When checked (true), web properties are defined by the closest Web Properties block found

useDefault

Web Properties

WP1

Name of the record containing the web properties (enabled when Use default properties = false)

wp

$d_0$

$1$

$\frac{N\cdot s^2}{m^4}$

Quadratic damping per unit area applied to interior nodes to reduce lateral vibration.

d_0

Name

Default

Units

Description

Modelica ID

Use sensor

$\mathrm{false}$

When checked (true), two signal outputs are enabled for the tension in the span and the material transfer speed

useSensor

Velocity output unit

$\frac{m}{s}$

Selects units of the velocity output; enabled when $\mathrm{Use\; Sensor}\=\mathrm{true}$

toUnitV

Force output unit

$N$

Selects units of the force output; enabled when $\mathrm{Use\; Sensor}\=\mathrm{true}$

toUnitF

Name

Default

Units

Description

Modelica ID

n

$5$

Number of interior nodes ($n+1$ segments)

n
